Large capacity lithium battery
MED, USCG approved
Far exceeds SOLAS requirements
External Light: ≥18h operation time over 4.3cd
Excellent waterproof and low temperature performance
Easy to install and use
Reliable and robust
Interior and exterior lights are separate from the battery body

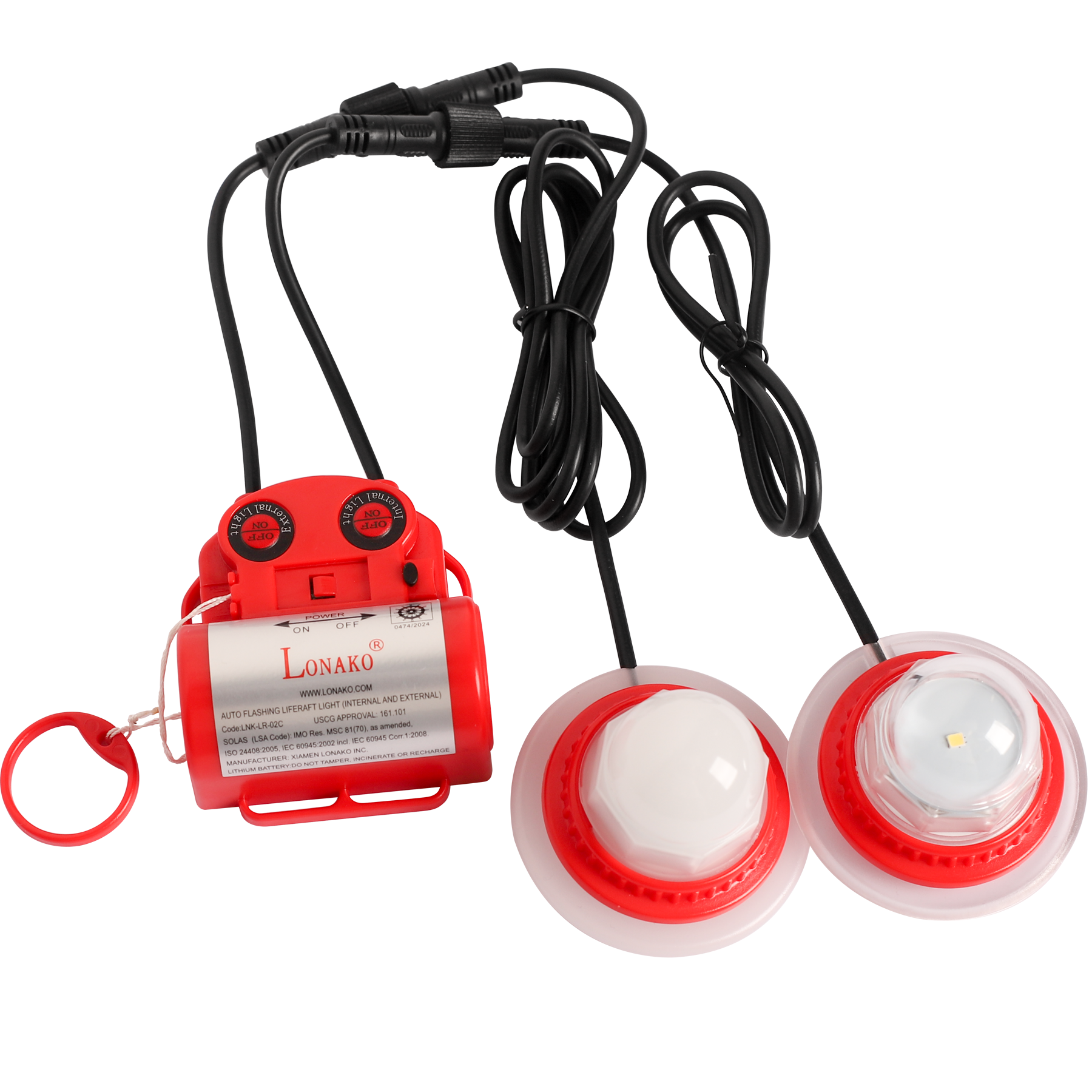

The LNK-LR-02C Liferaft Light is a lithium battery-powered emergency light designed for installation with liferafts. Upon liferaft inflation, the "O" shape ring on the light is pulled out, activating both the exterior and interior lights automatically. The exterior light, positioned atop the liferaft, emits a flashing signal with a light intensity exceeding 4.3cd, effectively indicating the liferaft's position for rescue. Meanwhile, the interior light provides steady illumination with a 0.5cd light intensity, suitable for basic tasks such as reading instructions. Manual switches on the light's main body allow independent control of the external and internal lights. Notably, the light excels in low-temperature conditions, with the external light capable of working for at least 18 hours at -30℃ while maintaining a light intensity exceeding 4.3cd.
Technical Parameters | Specification |
Battery Type | Lithium battery |
Light Source | External Light: 3*White LED Internal Light: 1* White LED |
Chromaticity | White |
Function | External Light: Flashing Internal Light: Steady |
Flash Frequency of External Light | 50～70times/min |
Light Intensity | External Light: ≥ 10cd |
Operation Time | ≥18h over 10cd at -30℃ |
Storage Temperature | -30℃ ～ +65℃ |
Working Temperature | -1℃ ～ +30℃ |
Expiry Date | 5 years from date of manufacture |
Weight | About 223g (Length of internal light wire: 650mm; Length of external light wire: 1250mm) |
Dimensions | Battery Body: 62*73*33.5mm Lamp Cover: Ф62.5*42mm |
Activation | Both external and internal light activates automatically when the liferaft is inflated; Both lights can be turned on/off by pressing their respective switches. |
Performance | Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof |
Environment Performance | Meet RoHS and asbestos-free requirements |
Standards | IMO Res. MSC.81(70), as amended, lEC 60945:2002 incl. lEC 60945 Corr.1:2008, ISO 24408: 2005, USCG 161.101 |
Certifications | MED, USCG |
-
