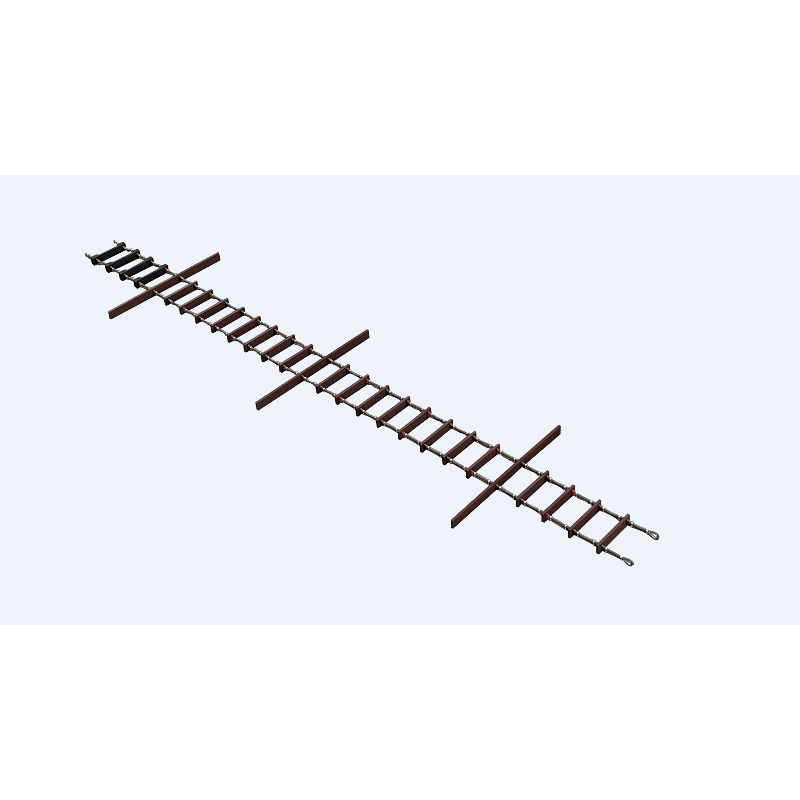

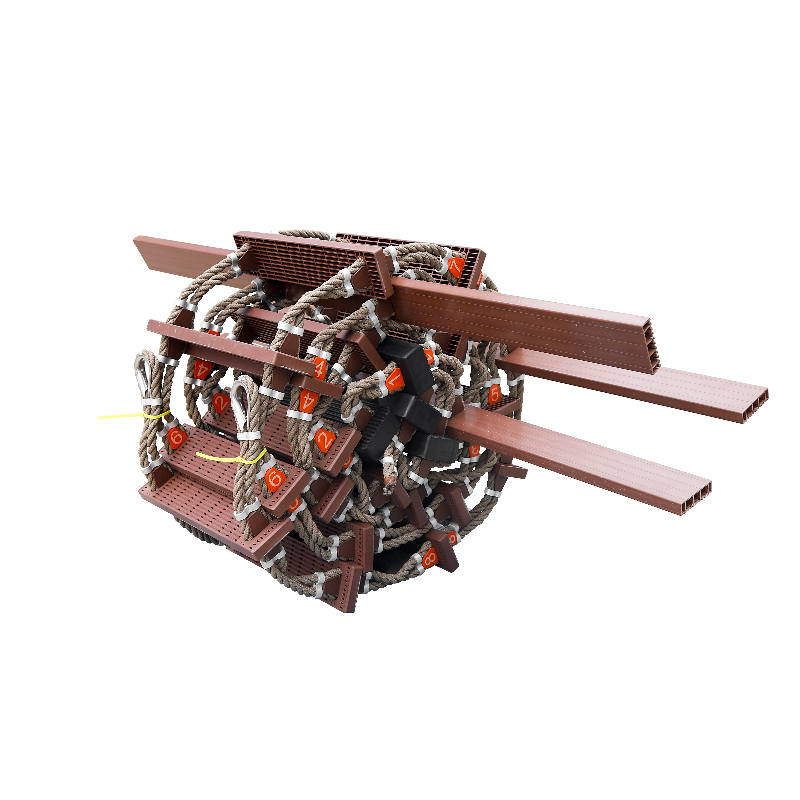

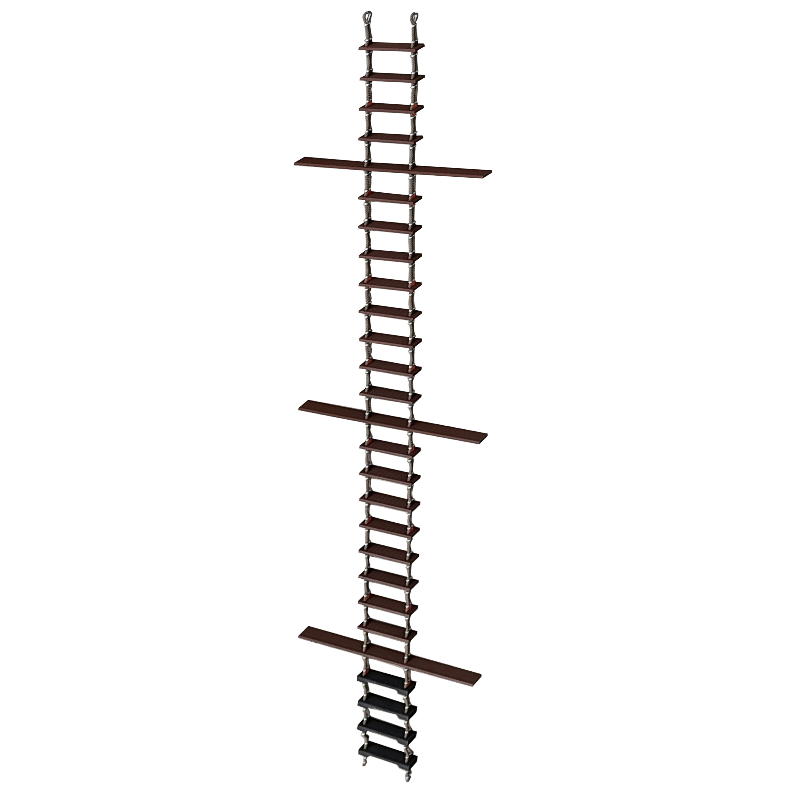

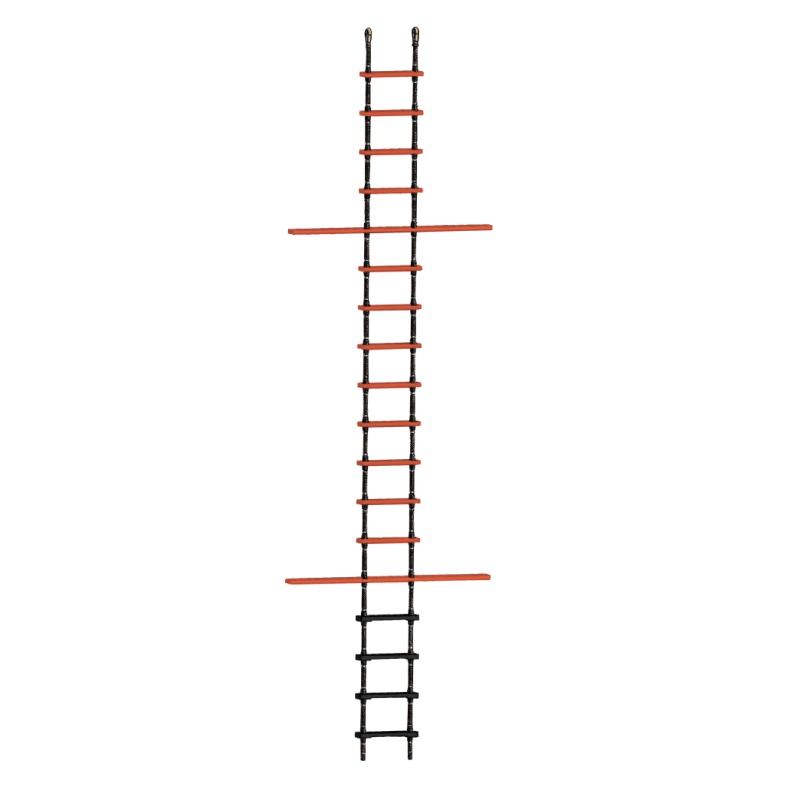

LNK-PLD Series Composite Pilot ladder
  • Made with LONAKO Composite Step & Step Fixture

  • Meet Standards: IMO Res.A.1045(27), as amended; ISO 799-1:2019

  • Secured with triple-strand polypropylene/polyester blend rope (polypropylene core with polyester outer sheath), comply with ISO 1181:2004 standard

  • Performance exceeds requirements in ISO 799-1:2019 & ISO 1181:2004

  • Excellent corrosion and aging resistance

  • Environmentally friendlier than wood

LNK-PLD Series Composite Pilot ladder
description

LNK-PLAD pilot ladder is a rope ladder for pilots to safely board and disembark from either side of the ship. It is one of the important devices for the transfer of pilots on ships. The products comply with ISO799-1:2019 standard, SOLAS Chapter V Article 23, and IMO A1045 (27), and have obtained MED certification.

The product design is made of high-strength Lonako composite material steps and recyclable polymer side ropes, combined with innovative step fixture technology and more reliable rope seizing methods. By eliminating the potential hazards of traditional materials due to corrosion and aging, and improving product safety performance. And make the entire ladder material can be recycled at the same time. Thereby protecting our planet by reducing the use of wood and destruction of forest resources.

parameter

TECHNICAL PARAMETERS

SPECIFICATION

Maximum Length of Composite Pilot Ladder

25 meters

Composite Standard Step

Size: 528*117*30 mm      Weight: 1.2 kg

Composite Spreader Step

 Size: 1805*116*30 mm     Weight: 3.2 kg

Rubber Step

Size: 533*118*26 mm      Weight: 4 kg

Polyester Rope

Diameter: φ22 mm       Tensile force: 24 kN

Diameter: φ28 mm       Tensile force: 48 kN

Spacing Between the Two Steps

330±20 mm

Spacing Between the Two Side Ropes

400 mm

Loading Capacity of Step

8.8 kN

Operation and Storage Temperature

-30to +65

Meet Standards

IMO Res.A.1045(27), as amended;

                                     IS0 799-1:2019

Certification

MED
