LNK-ELD-TA Series Composite Embarkation Ladders

The first 100% Polymer material embarkation ladder

More Safety: over 11kN load-bearing (standard is 8.8kN)

Recyclable and Environment Friendly

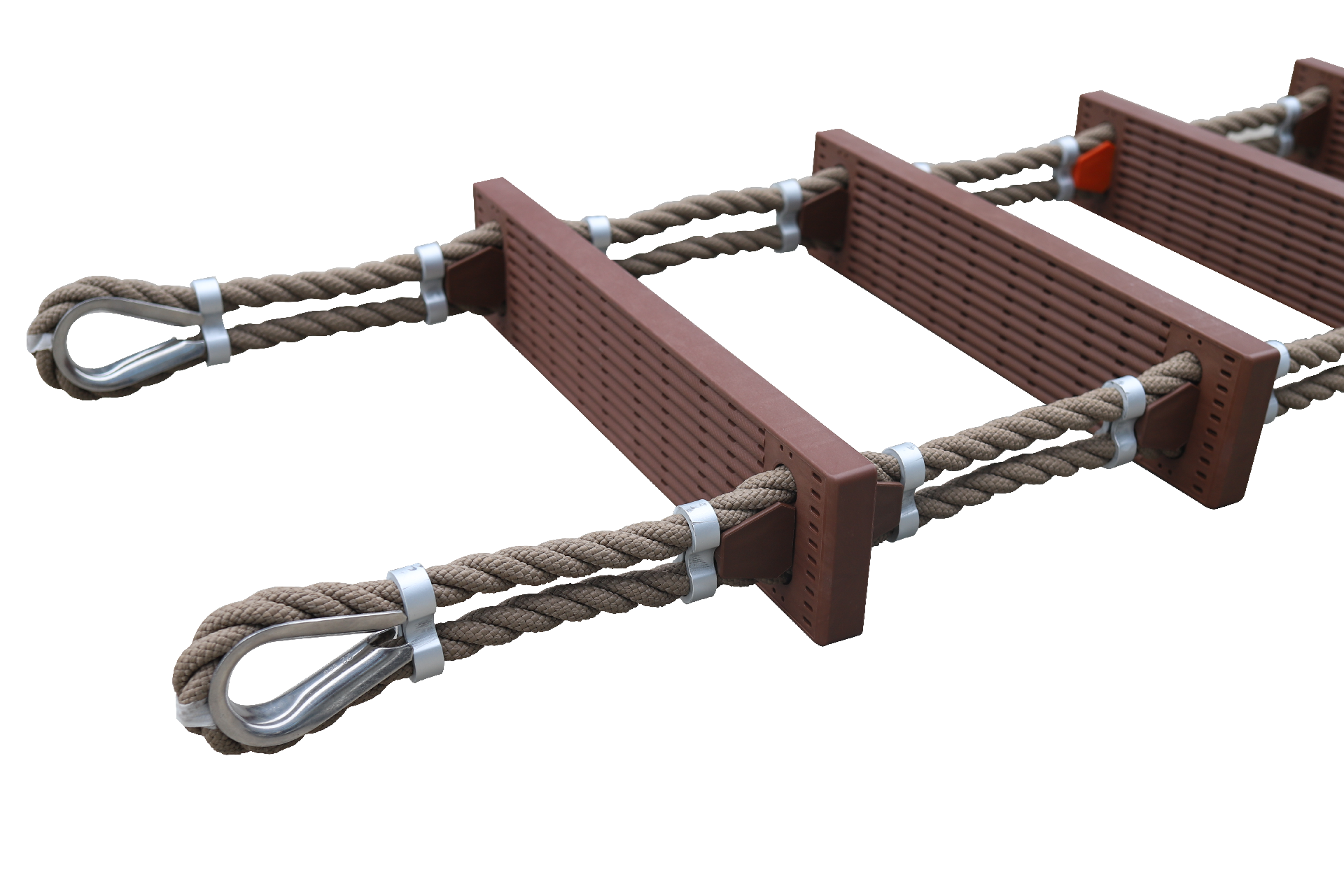

316 Stainless steel thimbleHigh corrosion resistance meet ISO 11510:2014 and ISO 5489:2008  (3.3.3)

Lonako self-developed composite Steps ISO 5489 & ISO 799 certified single step >11kN load

Self-developed step fixture and innovative method to combine step with the fixture in ONE part.Puls more reliable rope seizing fixing

Recyclable, anti-aging polymers side rope breaking strength>48 kN meet ISO 5489:2008 (3.2)

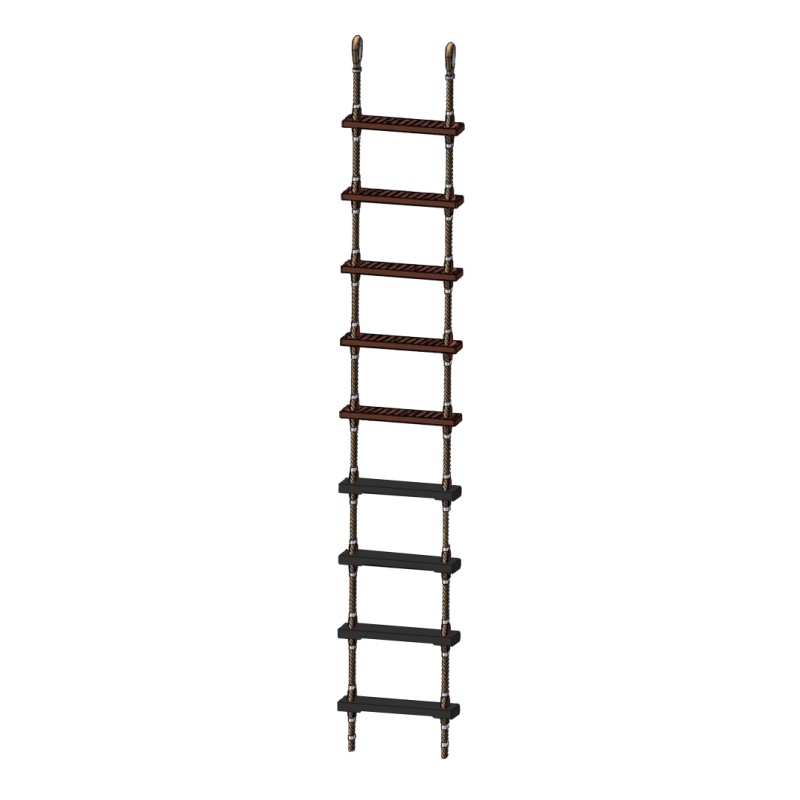

The steps at the bottom four stages are optional and buyers could choose composite or rubber ones.

LNK-ELD-TA Series Composite Embarkation Ladders
description

LNK-ELA-TA Composite Embarkation Ladder is a marine evacuation rope ladder set at the boarding site of a lifeboat and raft for people to safely board the lifeboat and raft that have descended on the water. The products meet the ISO 5489:2008 standard and have obtained MED certification.

The product design is made of high-strength Lonako composite material steps and recyclable polymer side ropes, combined with innovative step fixture technology and more reliable rope seizing methods. By eliminating the potential hazards of traditional materials due to corrosion and aging, and improving product safety performance. And make the entire ladder material can be recycled at the same time. Thereby protecting our planet by reducing the use of wood and destruction of forest resources.



parameter

TECHNICAL PARAMETERS

SPECIFICATION

Maximum Length of Composite Embarkation Ladder

66 meters

Composite Step

Size: 528*117*30 mm

Weight: 1.2 kg

Rubber Step

Size: 533*118*26 mm

Weight: 4 kg

Polyester Rope

Diameter: φ22 mm

Tensile force: 24 kN

Spacing Between the Two Steps

330±20 mm

Spacing Between the Two Side Ropes

400 mm

Loading Capacity of Step

8.8 kN

Operation and Storage Temperature

-30to +65

Meet Standards

MSC.81(70), as amended; ISO 5489:2024

Certification

MED, USCG
