LIFEBUOY LIGHTS
LIFEBUOY LIGHTS
LNK-LB-02B Lifebuoy Light

Alkaline battery-powered

Obtained MED certification

Far exceeds SOLAS requirements

≥24 working hrs over 2.0cd (standard required 2hrs)

Compact mini size and lightweight(only 6*14.4cm, 114g)

Easy installation and operation

Automatic on in water

76 meters drop height

Installation bracket included

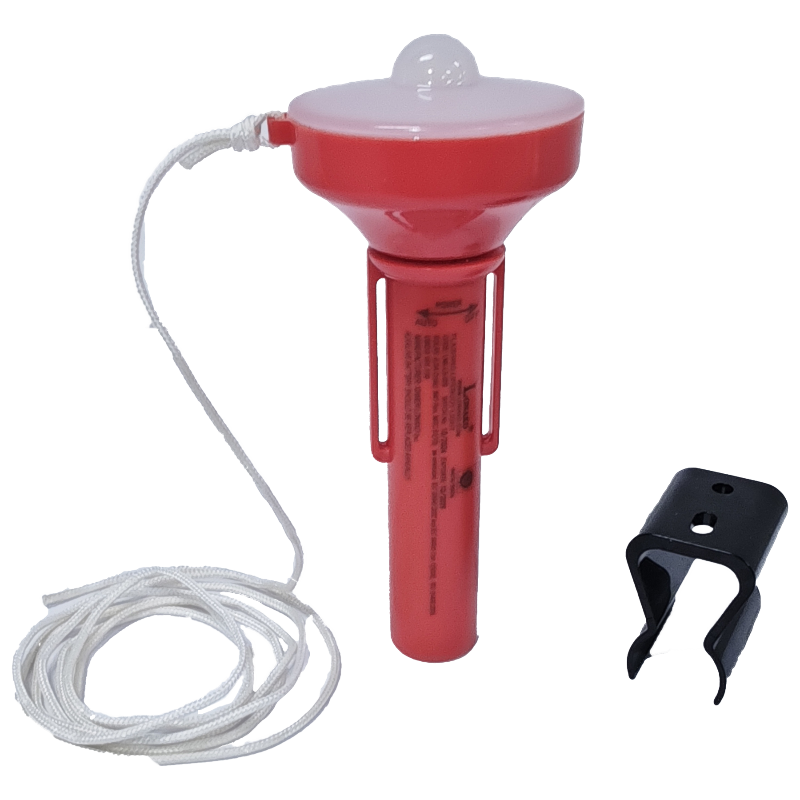

LNK-LB-02B Lifebuoy Light
description

The LNK-LB-02B Lifebuoy Light is a replaceable alkaline battery-powered emergency light designed for man overboard situations. Positioned alongside the lifebuoy and attached to it, this light is designed to accompany the lifebuoy when thrown into the water. Upon immersion, the light automatically floats, and the LED lamp orients upwards, activating to emit a flashing white light with an intensity exceeding 2.0cd for at least 24 hours (10 hours at -1℃). This prolonged illumination serves to continuously indicate the lifebuoy's position, significantly enhancing the chances of a successful rescue.

Incorporating a gravity sensor activation system, the light is designed to self-right in water, ensuring proper orientation, and it automatically turns off within 3 seconds when not in use. The LNK-LB-02B is a reliable and efficient solution for maritime safety and emergency response.

parameter

Technical Parameter

Specification

Battery Type

2* AA alkaline batteries (replaceable)

Light Source

LONAKO patented LED

Chromaticity

White

Light Type

Flashing

Flash Frequency

5070times/min

Luminous Intensity

≥2.0cd

Operation Life

24h over 2.0 cd (10h at -1)

Maximum Stowage Height

76 meters

Storage Temperature

-30  +65

Working Temperature

-1  +30

Expiry Date

5 years from date of manufacture

Weight

114g (including clip)

Dimension

Main Body: Φ60*144mm

Activation

Automatically turn on when the head of light is upwards; Automatically turn off when the head of light is downwards

Performance

Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof, UV-resistant

Environment Performance

Meet RoHS and asbestos-free requirements

Standards

IMO Res.MSC.81 (70), as amended, lEC 60945:2002 incl. IEC 60945 Corr.1(2008), IS0 24408:2005, USCG 161.110

Certifications

MED, USCG
