MED USCG lifejacket light
Far exceeds SOLAS requirements
Light intensity is about 2 times compare to standards requirement
≥28 working hrs over 0.75cd(standard required 8hrs)
Lithium battery
Unique self-float design
AUTO water activated could manually turn on/off while in water
Multi-function “FLASHING-STEADY-SOS-OFF”

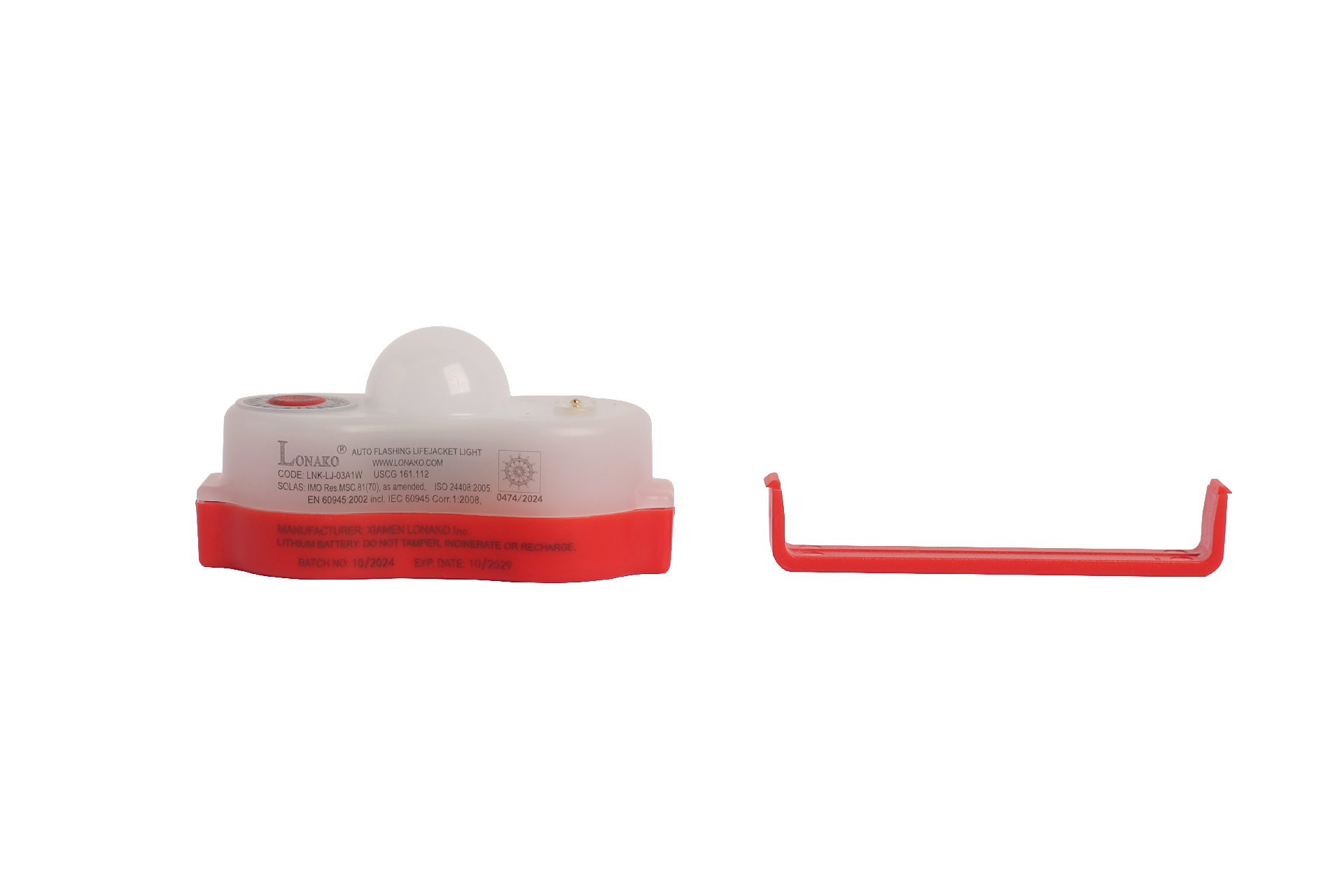

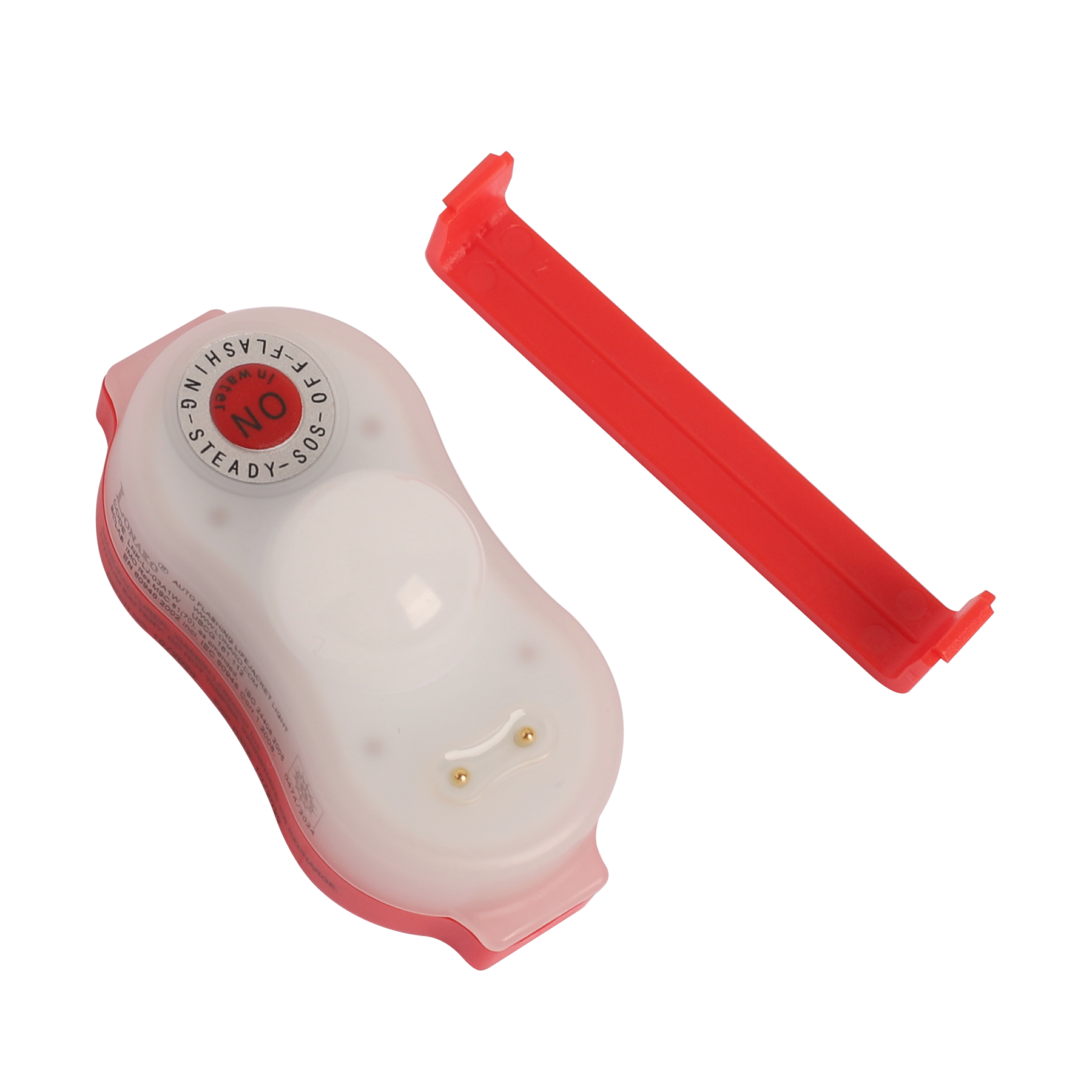

LNK-LJ-03A1W lifejacket lights are lithium battery-powered emergency lights to be installed on all kinds of life jackets. When the lifejacket lights contact water, they will be automatically activated and keep outputting the flashing white light more than 0.75cd light intensity during at least 28hours(24 hours at -1℃), which can uninterruptedly indicate the survivor’s location to increase the success rate of rescue. They can be manually turned off and turned on while the water sensors contact with water. The lights can self-float on the water at any time because of the structure design.
LNK-LJ-03A1W : Available to switch different functions as the operating sequence “FLASHING– STEADY - SOS – OFF” via the manual switch while the water sensors contact with water.
Technical Parameters | Specification |
Battery Type | Lithium battery |
Light Source | LED |
Chromaticity | White |
Light Type | LNK-LJ-03A1W: Flashing-Steady-SOS-OFF |
Flash Frequency | 50~70times/min |
Luminous Intensity | ≥1.5cd(Regulatory requirements≥0.75cd) |
Operation Life | ≧28h over 1.5cd (24h at -1℃) |
Storage Temperature | -30℃ ~ +65℃ |
Working Temperature | -1℃ ~ +30℃ |
Expiry Date | 5 years from date of manufacture |
Weight | 30g (including clip) |
Dimensions | Main body: 62*28.4*31.5mm Clip: 61.2*9.5*11.7mm |
Activation | Automatically water-activated Manual on/off (in water) |
Performance | Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof, |
Environment Performance | Meet RoHS and asbestos-free requirement |
Standards | IMO Res.MSC.81 (70), as amended, EN 60945:2002 incl. lEC 60945 Corr.1:2008, ISO 24408:2005 |
Certifications | MED, USCG |
