Lithium battery-powered
MED, CCS, USCG approved
Far exceeds SOLAS requirements
Exterior Light: ≥15h operation time over 4.3cd at -30°C
Excellent waterproof and low temperature performance
Compact size, the inner light is integrated with the main body
Easy simple installation, just use included clip to fix the main body

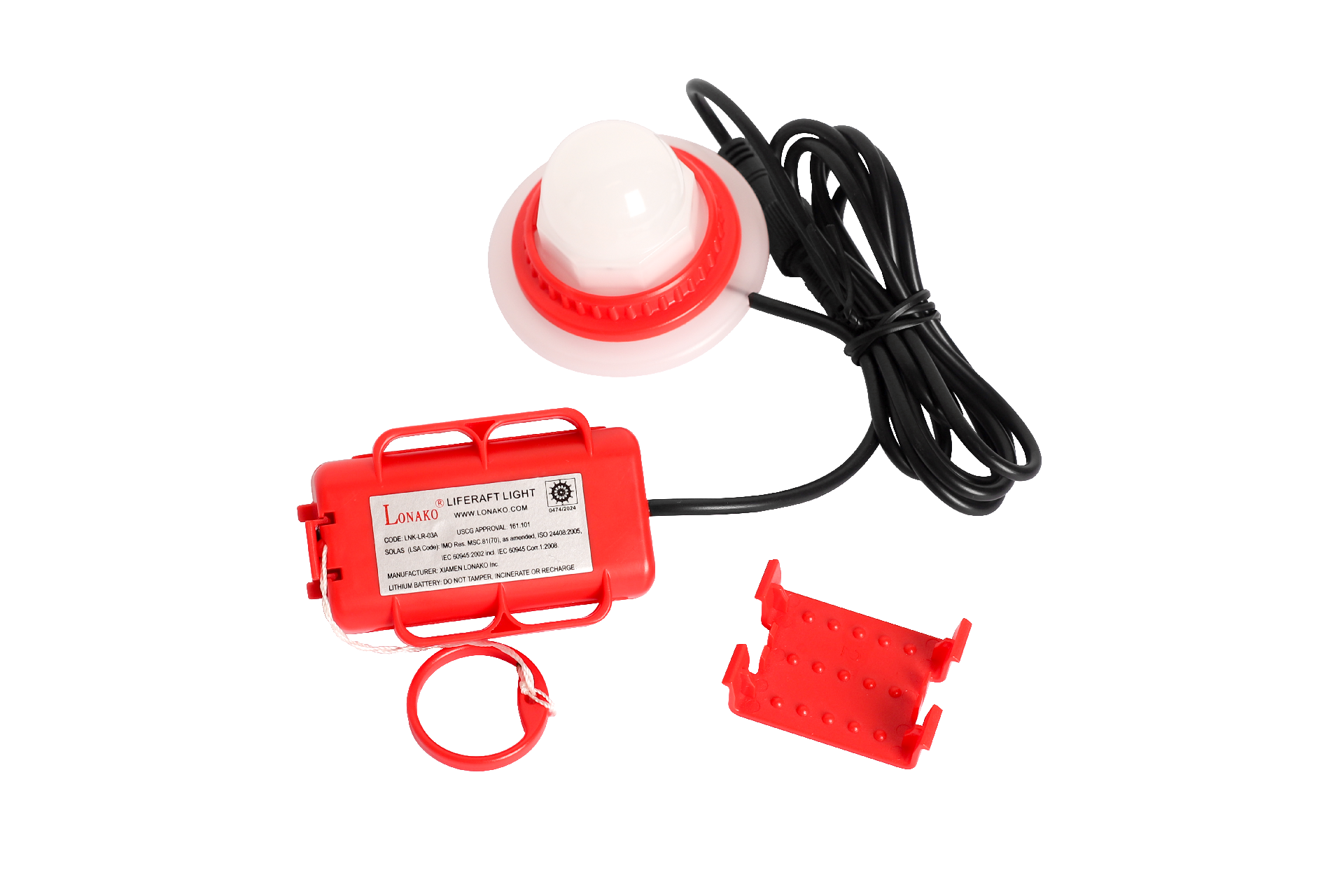

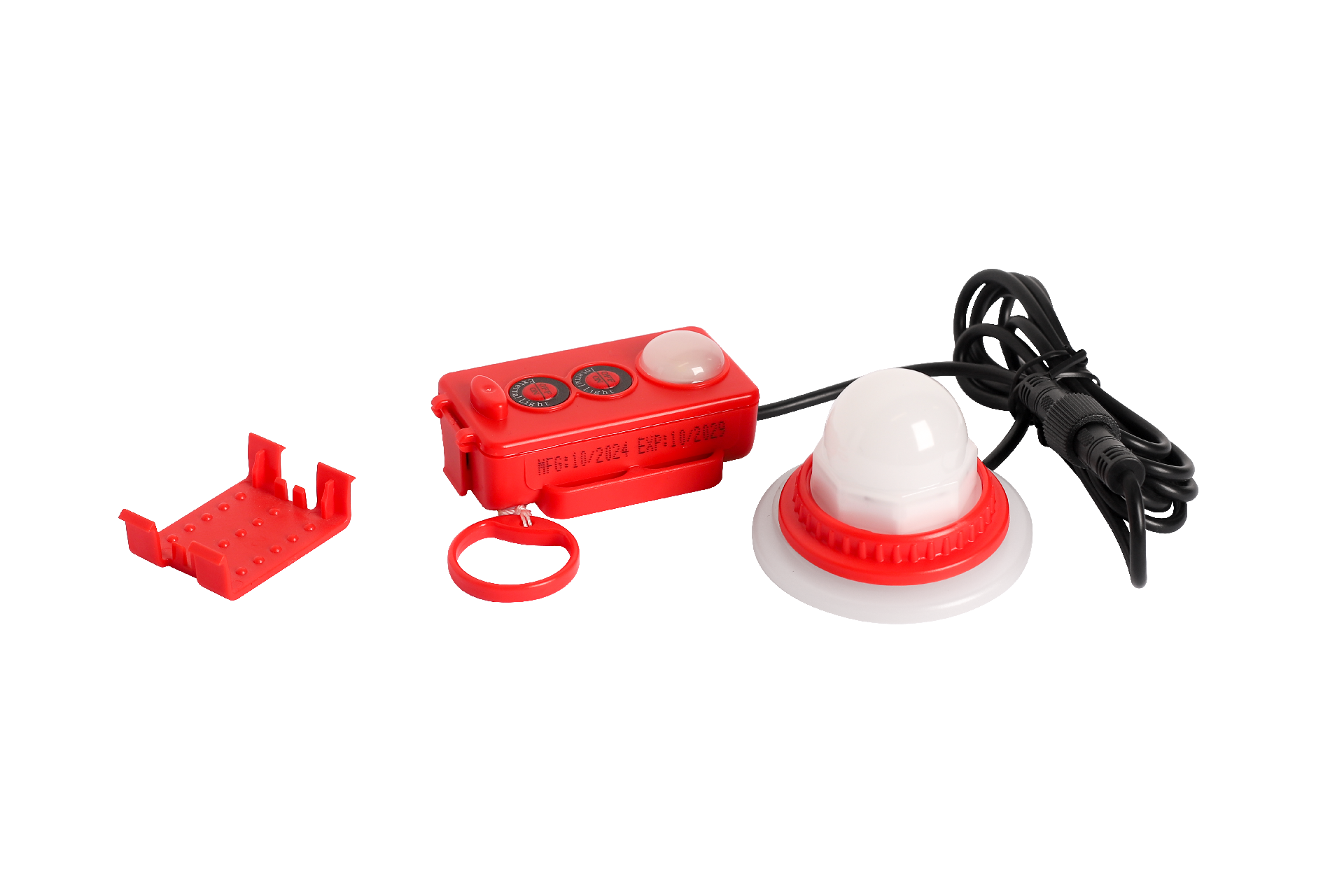

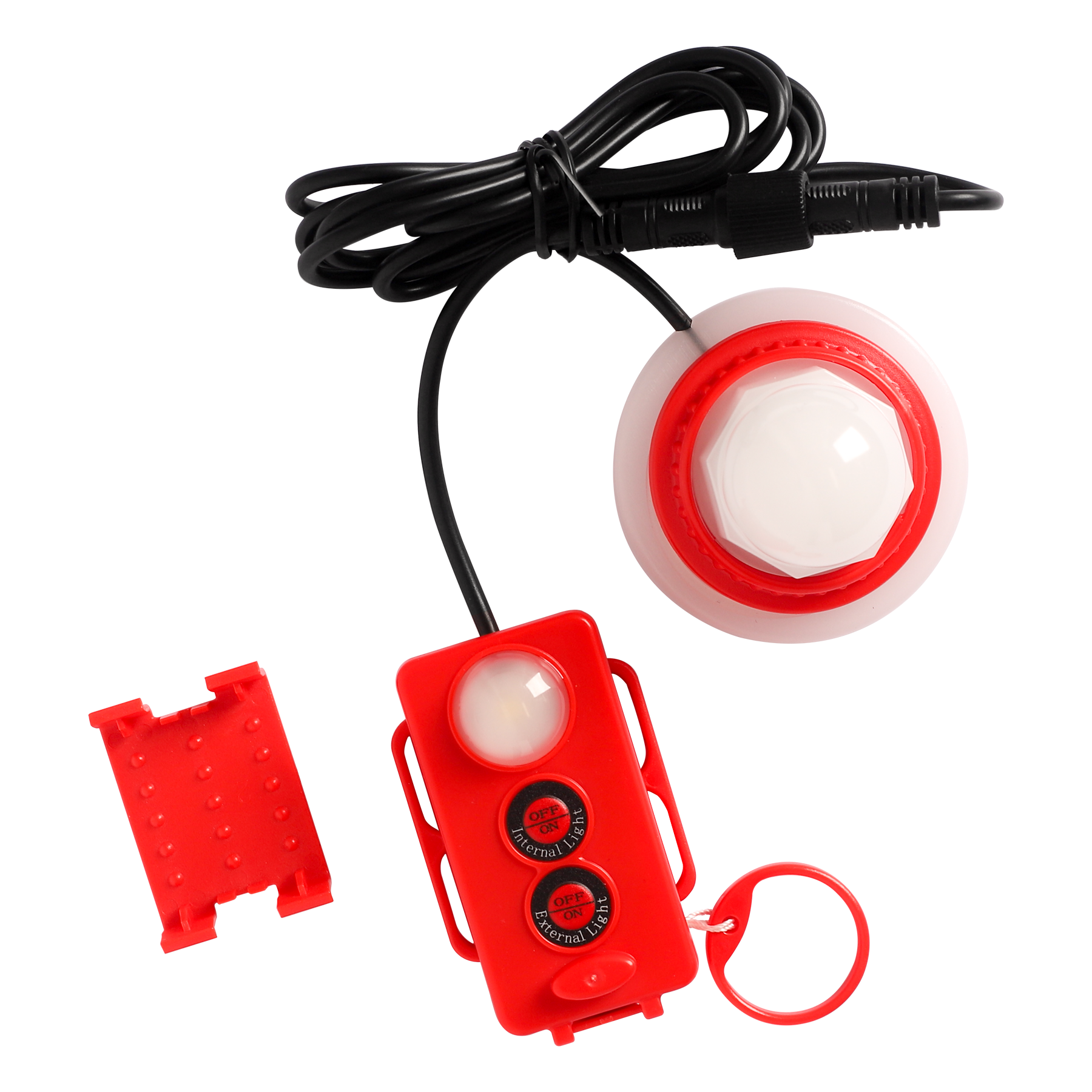

The LNK-LR-03A Liferaft Light is a lithium battery-powered emergency light designed for installation with liferafts. Upon liferaft inflation, the "O" shape ring on the light is pulled out, triggering the opening of the switch clip, which automatically activates both the exterior and interior lights. The exterior light, positioned on the top of the liferaft canopy, emits a flashing signal with a light intensity exceeding 4.3cd, continuously indicating the liferaft's position. Simultaneously, the interior light, integrated into the light's main body, provides a steady 0.5cd light for reading instructions and basic illumination. Independent manual switches on the light's main body allow for separate control of the external and internal lights. Remarkably, the light excels in low-temperature conditions, with the exterior light capable of working for at least 15 hours at -30℃ while maintaining a light intensity exceeding 4.3cd.
Technical Parameters | Specification |
Battery Type | Lithium battery |
Light Source | External Light: 3* LED Internal Light: 1* White LED |
Chromaticity | White |
Function | External Light: Flashing Internal Light: Steady |
Flash Frequency of External Light | 50～70times/min |
Light Intensity | External Light: ≥4.3 cd Internal Light: ≥0.5cd |
Operation Time | ≥15h over 4.3cd at -30℃ |
Storage Temperature | -30℃ ～ +65℃ |
Working Temperature | -1℃ ～ +30℃ |
Expiry Date | 5 years from date of manufacture |
Weight | About 120g (Length of external light wire: 1250mm) |
Dimensions | Battery Body: 71.5*44.7*28mm Lamp Cover: Ф62.5*41.75mm |
Activation | Both external and internal light activates automatically when the liferaft is inflated; Both lights can be turned on/off by pressing their respective switches. |
Performance | Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof |
Environment Performance | Meet RoHS and asbestos-free requirements |
Standards | IMO Res. MSC.81(70), as amended, lEC 60945:2002 incl. lEC 60945 Corr.1:2008, ISO 24408: 2005, USCG 161.101 |
Certifications | MED, USCG, CCS |
-
