Obtained MED, CCS，USCG certification
Far exceeds SOLAS requirements
Light intensity is about 1.5 times compared to standards requirement
≥26 working hrs over 0.75 cd（standard required 8hrs）
Alkaline battery, environmentally friendly and convenient disposal
No transport restrictions
AUTO water-activated, could manually turn on/off while in water
Extended lamp type

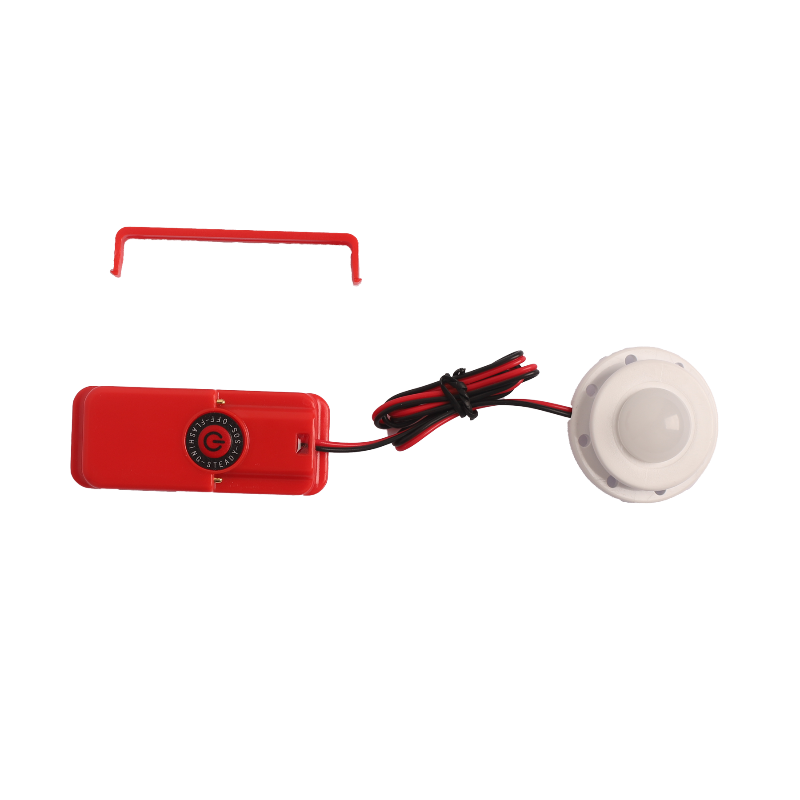

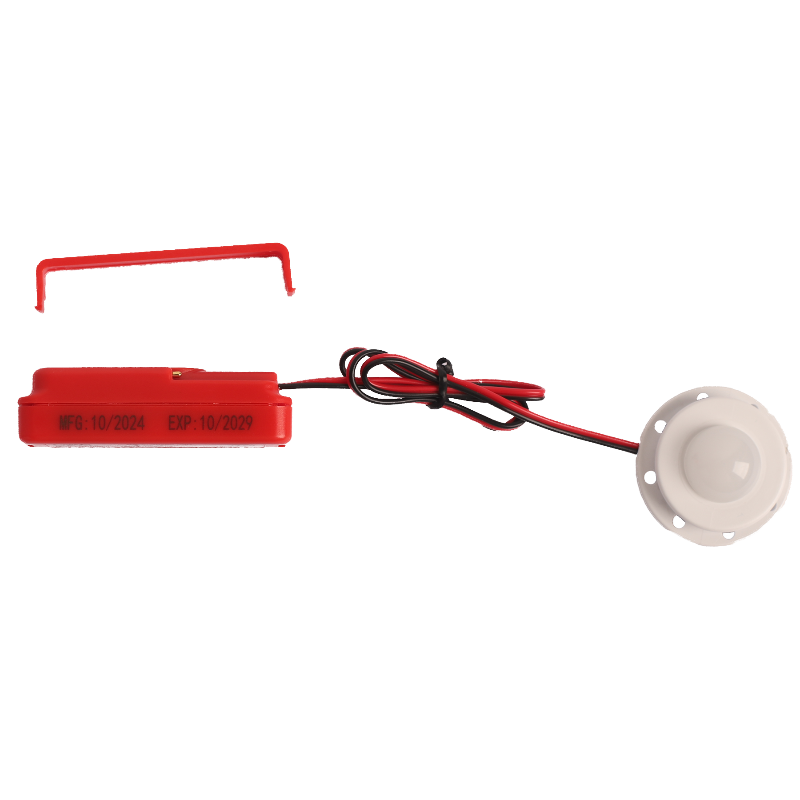

LNK-SL1W lifejacket light is alkaline battery-powered emergency lights to be installed on all kinds of life jackets (especially suitable for inflatable lifejackets), in order to indicate the location of survivors.
When the water sensors of lifejacket lights contact water, the lights will be automatic activated and keep outputting the flashing white light more than 0.75cd light intensity during at least 26 hours (13 hours at -1℃), which can uninterruptedly indicate the survivor’s location to increase the success rate of rescue. They can be manually turned off and turned on while the water sensors contact with water.
LNK-SL1W : available with the operating sequence “FLASHING – STEADY - SOS – OFF” via the manual switch while the water sensors contact with water.
Technical Parameters | Specification |
Battery Type | Alkaline batteries |
Light Source | LED |
Chromaticity | White |
Light Type | LNK-SL1W: Flashing-Steady-SOS-OFF |
Flash Frequency | 50～70times/min |
Luminous Intensity | ≥1.2cd(Regulatory requirements ≥ 0.75 cd) |
Operation Life | ≥26h over 1.2cd (13h at -1℃） |
Storage Temperature | -30℃ ～ +65℃ |
Working Temperature | -1℃ ～ +30℃ |
Expiry Date | 5 years from date of manufacture |
Weight | 50g (including clip) |
Dimensions | Main Body: 62.5*25.4*17.5mm LED Lamp: Φ38.2*18mm Wire Length: 39cm Clip: 61.2*9.5*11.7mm |
Activation | Automatically water-activated Manual on/off (in water) |
Performance | Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof |
Environment Performance | Meet RoHS and asbestos-free requirement |
Standards | IMO Res. MSC.81 (70), as amended, EN 60945:2002 incl. lEC 60945 Corr.1:2008, ISO 24408:2005 |
Certifications | MED, USCG, CCS |
-
