Obtained MED CCS USCG certification
Far exceeds SOLAS requirements
Light intensity is about 1.2 times compare to standards requirement
≥26 working hrs over 0.75cd（standard required 8hrs）
Alkaline battery environmentally friendly and convenient disposal
No transport restrictions
Flashing type
Manual switch more suitable for leisure market such as surfing etc

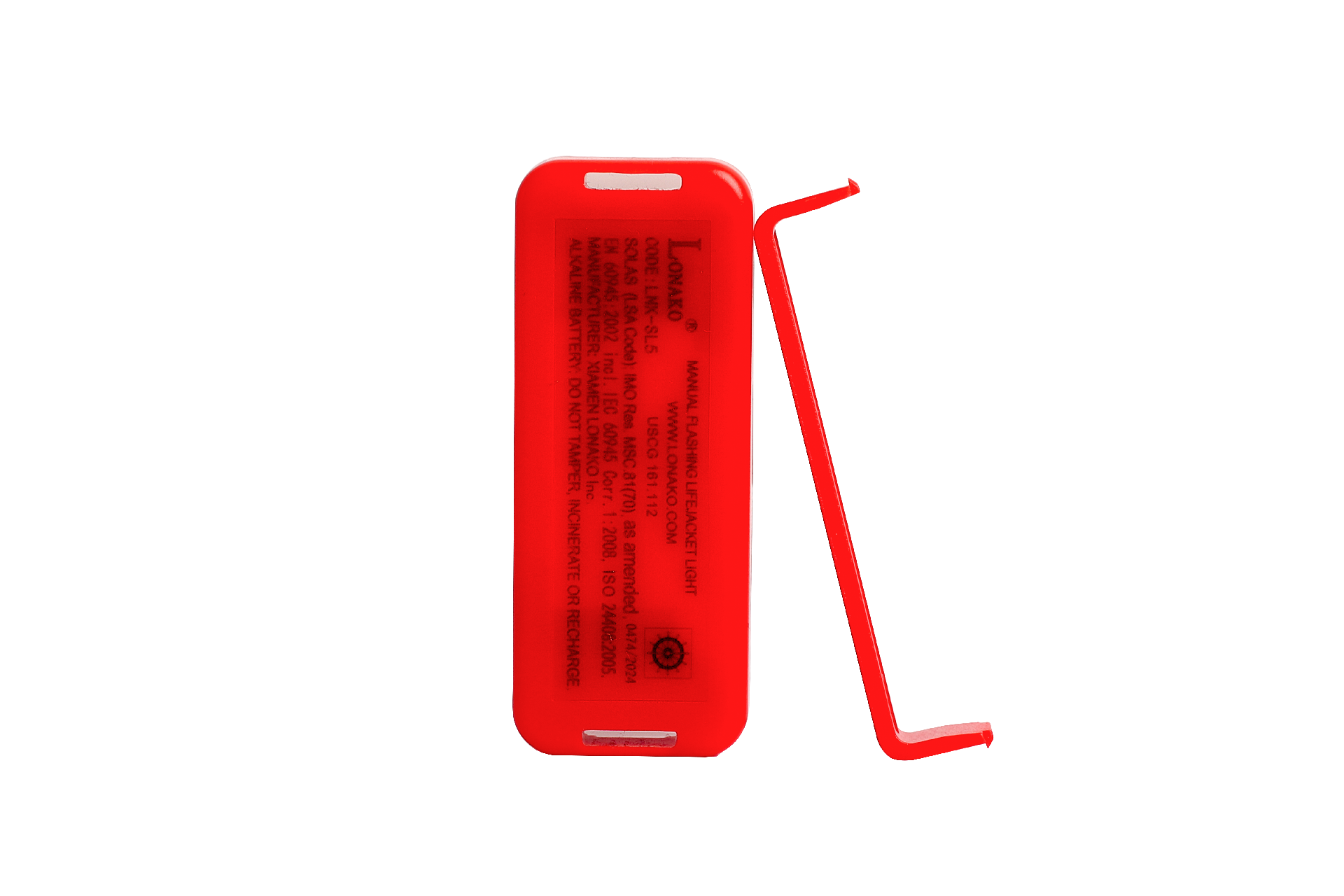

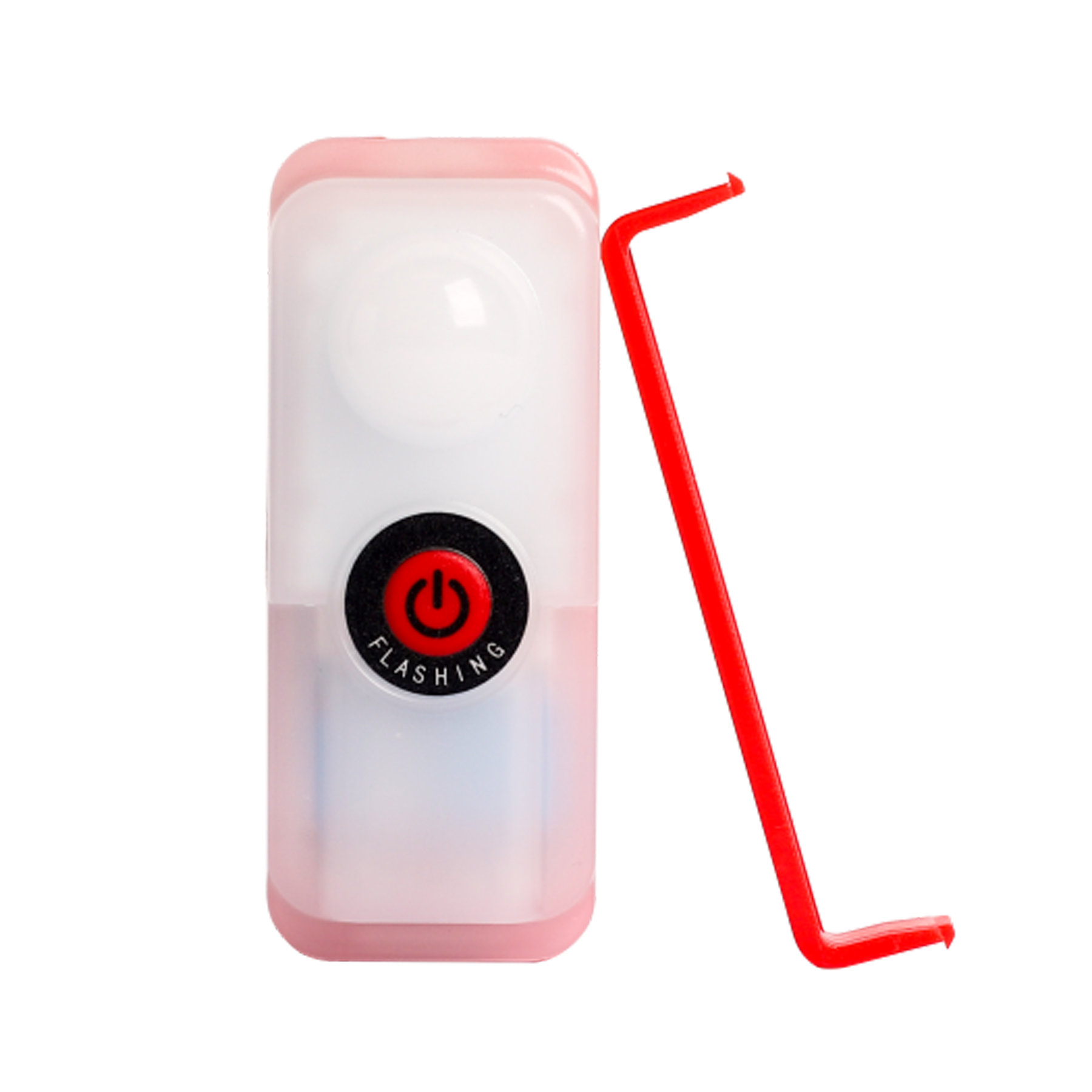

LNK-SL5 lifejacket lights are alkaline battery-powered emergency lights to be installed on all kinds of life jackets. When the lifejacket lights were turned on by manual switch they can keep outputting the light more than 0.75cd light intensity during at least 26 hours (13 hours at -1℃) which can uninterruptedly indicate the survivor’s location to increase the success rate of rescue.
LNK-SL5 : Only with signal flashing light can be manually turned ON and OFF.
Technical Parameters | Specification |
Battery Type | Alkaline batteries |
Light source | LED |
Chromaticity | White |
Light Type | LNK-SL5: Flashing |
Flash Frequency | 50～70times/min |
Luminous Intensity | ≥ 1.2cd(Regulatory requirements≥0.75cd) |
Operation Life | ≥26h over 1.2cd (13h at -1℃) |
Storage Temperature | -30℃ ～ +65℃ |
Working Temperature | -1℃ ～ +30℃ |
Expiry Date | 5 years from date of manufacture |
Weight | 38g (including clip) |
Dimensions | Main body: 62.5*25.4*23.5mm Clip: 61.2*9.5*11.7mm |
Activation | Manual on/off |
Performance | Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof, |
Environment Performance | Meet RoHS and asbestos-free requirement |
Standards | IMO Res. MSC.81 (70), as amended, EN 60945:2002 incl. lEC 60945 Corr.1:2008, ISO 24408:2005 |
Certifications | MED, CCS, USCG |
-
