AVIATION SURVIVOR LOCATOR LIGHT
AVIATION SURVIVOR LOCATOR LIGHT
LNK-AL15 AVIATION SURVIVOR LOCATOR LIGHT

CTSOA, FAA TSO LODA & EASA ETSOA approved; AAC-038  form available.

Strictly meet CTSO-C85b, TSO-C85b, ETSO-C85b standards

Battery invention patents in China, USA and France

Environmentally friendly & no toxic/harmful reactant

Activates immediately when immersed in freshwater or seawater

Operation life more than 10h at >1.0cd (1℃)

Compact and light (Main body 64.9*20.8*9.2mm; weight 29~40g)

Excellent anti-humidity performance

LNK-AL15 AVIATION SURVIVOR LOCATOR LIGHT
description

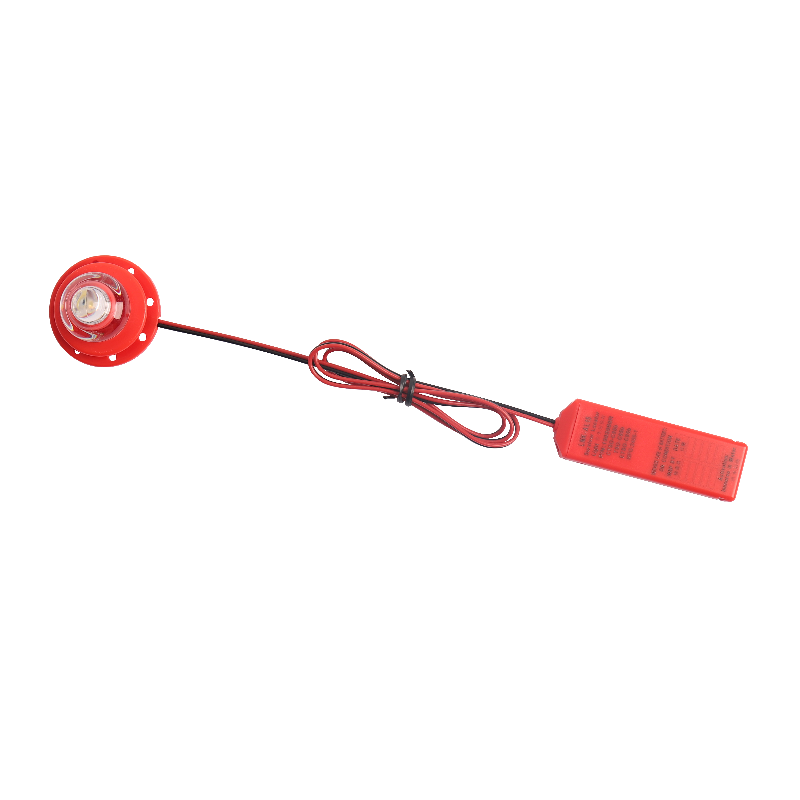

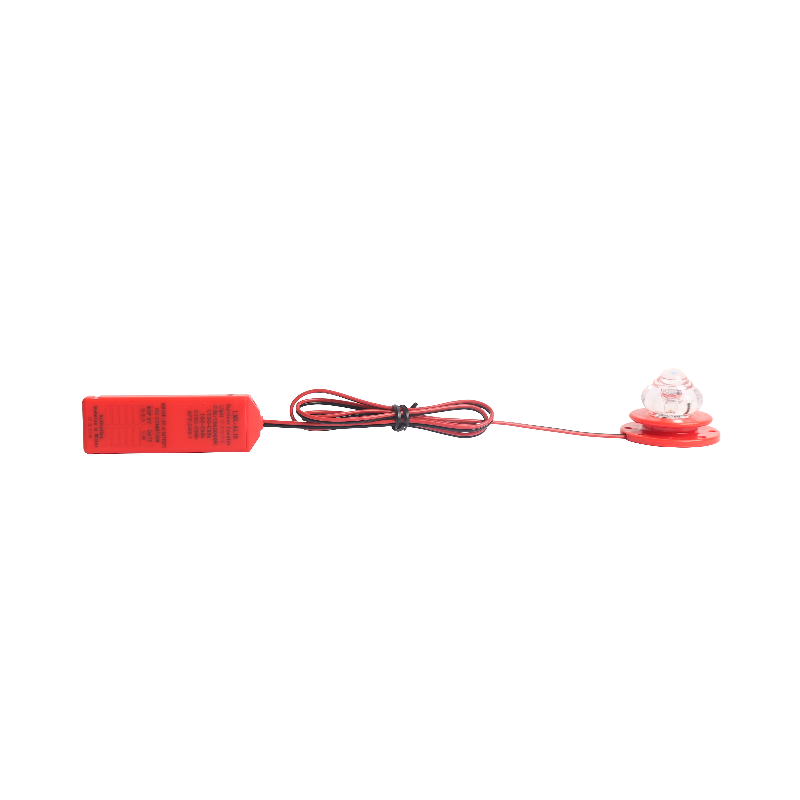

LNK-AL15 Survivor Locator Light is a reserve battery-powered emergency light to be installed on single or multiple flotation devices in order to indicate the location of survivors in water caused by aviation accidents. When the flotation device enters the water, the survivor locator light will automatically activate upon contact with or immersion in seawater or freshwater. It emits a continuous steady white light with a light intensity greater than 1cd for at least 8 hours, clearly indicating the position of the floating device and improving the success rate of rescuing survivors.

parameter

Technical Parameter

Specification

Light Type

Steady white light

Activation Method

Water-activated automatically

Minimum Light Intensity and Working Time

Light intensity 1cd for 10 hours on normal activation

Activation time

Activation time for seawater at 2℃ ≤ 5 minutes,

Activation time for freshwater at 2℃ ≤ less than 10 minutes

Working Temperature

2~30(+35.6°F~+86°F)

Product Dimension

Battery pack body: 64.9*20.8*9.2mm,

Lamp: φ38.2*26.9mm

Exposed Wire Length

20~300cm according to customer requirements

Weight

The light with manual pull ring is about 29~ 55g according to the wire length.

The light without manual pull ring is about 27~ 54g according to the wire length.
