LNK-LSL-3A INTRINSICALLY SAFE LIFEJACKET LIGHT

Obtain ATEX MED certifications

Intrinsically safe used for hazardous marine activities environment

Suitable for explosive environments in Zones 1 and 2

≥10 working hrs over 0.75cd(standard required 8hrs)

AUTO water-activated could manually turn on/off while in water

Flashing type

ATEX grade: II 2 G Ex ia IIC T3 Gb

Unique self- float design

LNK-LSL-3A INTRINSICALLY SAFE LIFEJACKET LIGHT
description

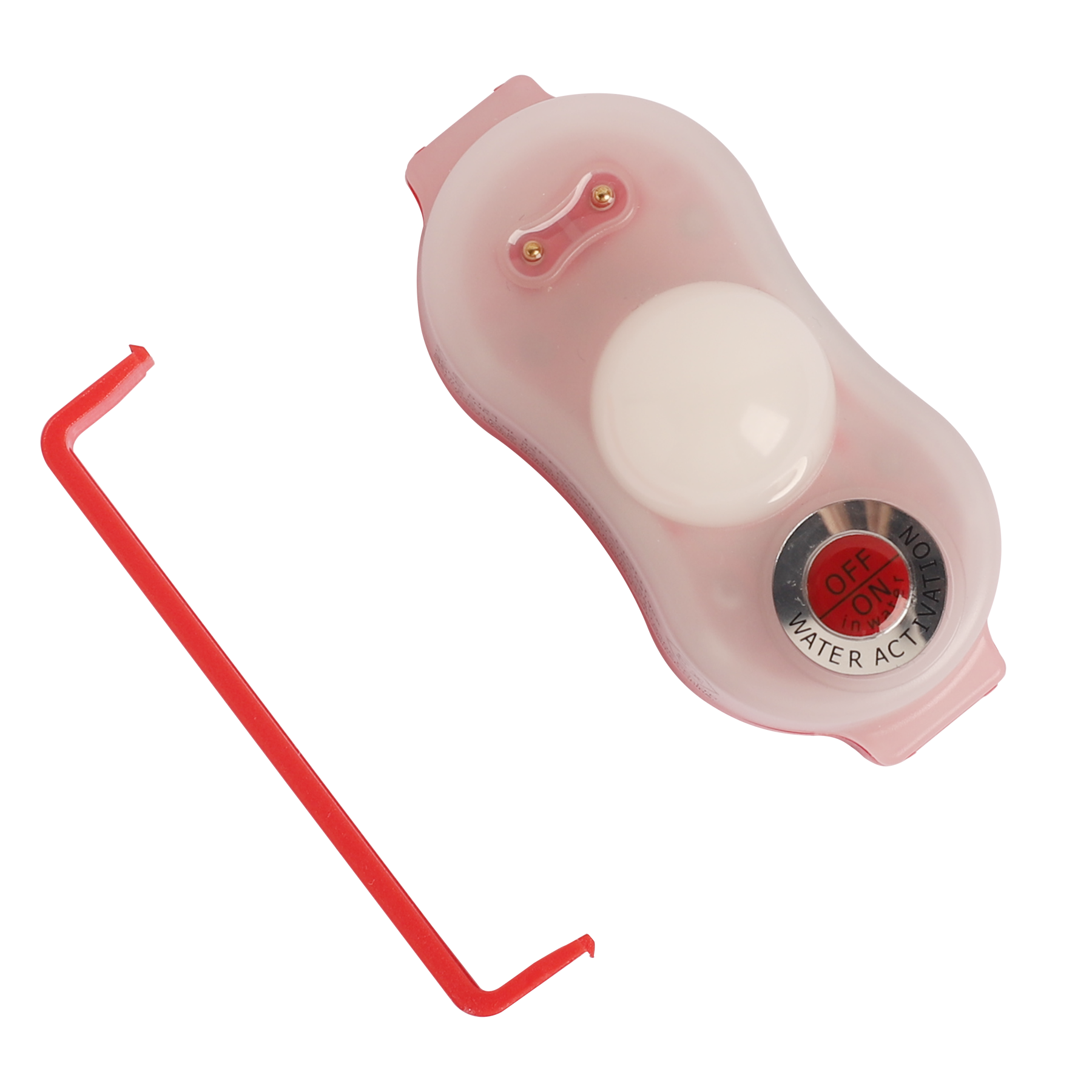

LNK-LSL-3A lifejacket light is intrinsically safe light to be installed on all kinds of life jackets. The products are SOLAS MED approved and also certified by ATEX.
The Marking is“    II 2G Ex ia ⅡC T3 Gb”-35℃≤Ta≤65℃ which represents:
“II”=Group II Non-mining equipment use for applications other than mines.
“2”=Category 2 (Zone 1 2)
“G”=Gas.
“Ex”=The equipment was fulfills current EN standard.
“ia”=Intrinsic safety with “very high” protection level.
“IIC”= IIC goup explosive gas typical gas is hydrogen.
“T3”=The maximum surface temperature is 200℃.
“Gb”=Equipment for explosive gas atmospheres having a "high" Level of Protection which is not a source of ignition in normal operation or during expected malfunctions .
Ambient Temperature is -35℃≤Ta≤65℃

They are suitable for hazardous marine activity applications such as offshore drill platform oil tanks etc.
The lights are automatically water activated. when the water sensors of the light contact the water. The light will automatically activate and keep outputting the flashing white light which can uninterruptedly indicate the survivors` location to increase the success rate of rescue. They can be manually turned off and turned on while the water sensors contact with water. The lights can self-float on the water because of the structure design.

parameter



Technical Parameters

Specification

Battery Type

Lithium battery

Light Source

LONAKO patented LED

Chromaticity

White

Light Type

LNK-LSL-3A: Flashing

Flash Frequency

5070times/min

Luminous Intensity

1.2cdRegulatory requirements 0.75 cd

Operation Life

≥10h over 1.2cd

Storage Temperature

-35  +65

Working Temperature

-1  +30

Expiry Date

5 years from date of manufacture

Weight

33g (including clip)

Dimensions

Main body: 62*28.4*31mm

Clip: 61.2*9.5*11.7mm

Activation

Automatically water-activated

Manual on/off (in water)

Performance

Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof, Dust-proof

Environment Performance

Meet RoHS and asbestos-free requirement

Standards

IMO Res.MSC.81(70),as amended,

lEC 60945:2002 incl. IEC 60945 Corr.1:2008.

ISO 24408:2005

EN IEC 60079-0:2018 and EN 60079-11:2012

Certifications

MED, USCG & ATEX
