LNK-LR-05A Liferaft Light
  • Large capacity lithium battery

  • MED, USCG approved

  • Far exceeds SOLAS requirements

  • Exterior Light: ≥15h operation time over 4.3cd at -30°C

  • Excellent waterproof and low temperature performance

  • Most compact exterior lamp size

  • Interior light integrated with battery body

LNK-LR-05A Liferaft Light
description

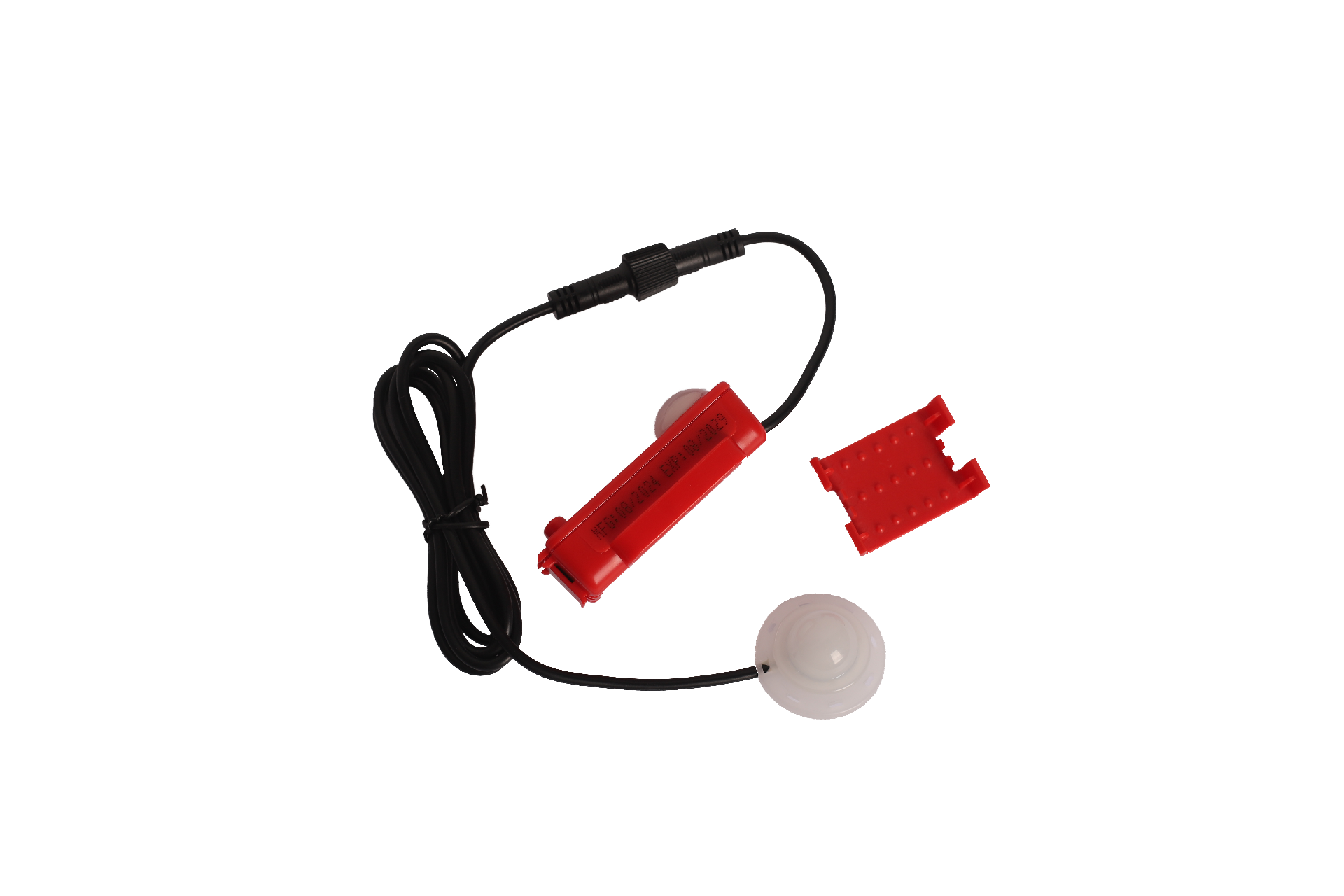

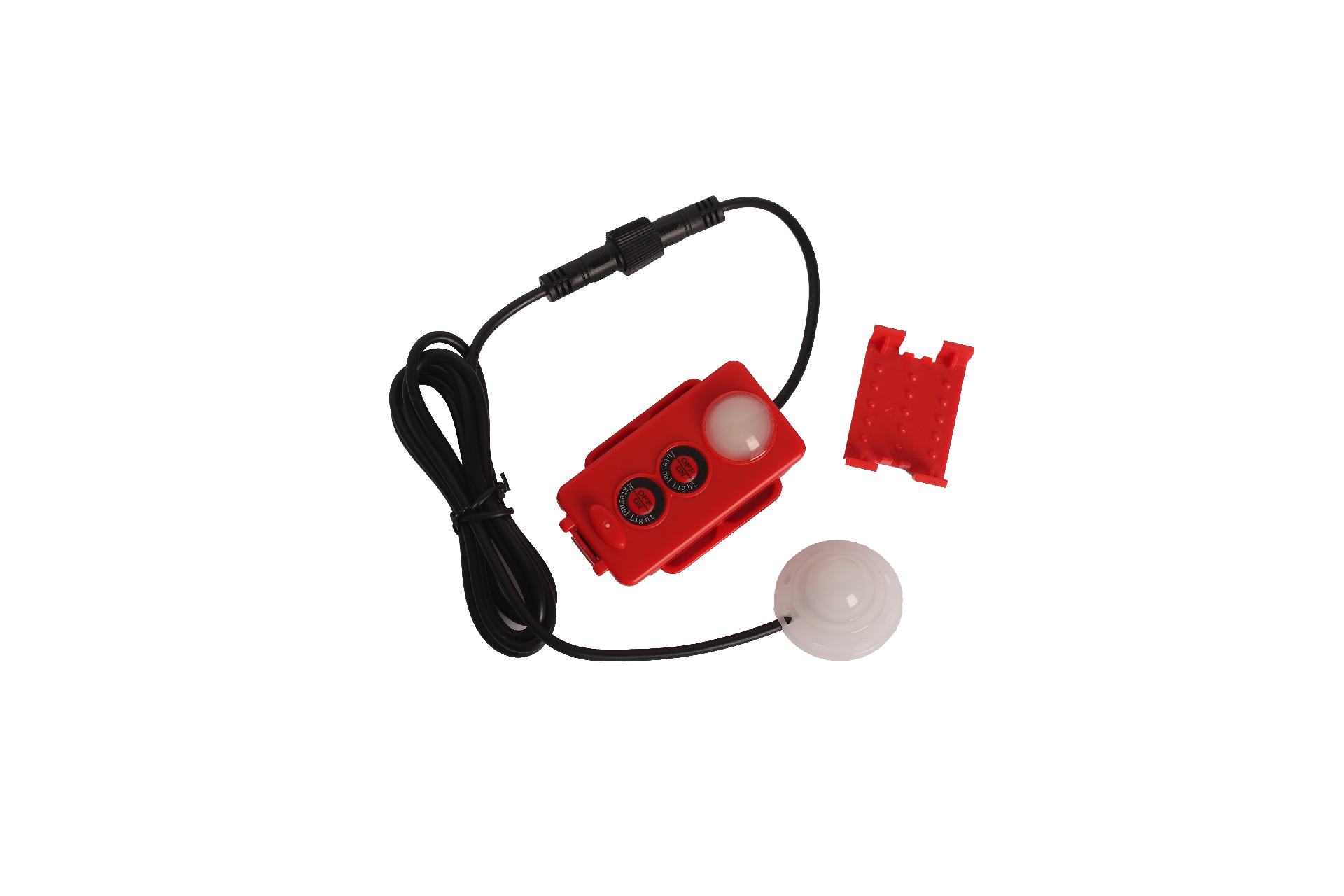

The LNK-LR-05A Liferaft Light is a lithium battery-powered emergency light to be installed on liferafts. This light is installed on the liferaft and is automatically activated when the liferaft is inflated and the “O” shaped ring has been pulled out from the switch clip.

The exterior light, positioned on the top of the liferaft, emits a flashing white light with a light intensity exceeding 4.3cd to clearly indicate the position of the liferaft. Meanwhile, the interior light, located inside the liferaft, provides a constant light with an intensity of over 0.5cd, serving as a basic lighting source for the occupants to read instructions and navigate inside the liferaft.

The LNK-LR-05A Liferaft Light features a user-friendly manual switch on the main body of the light, allowing users to control its operation. The light has outstanding performance in low temperatures, with the external light capable of operating for a minimum of 15 hours at a light intensity exceeding 4.3cd, even in temperatures as low as -30°C.


parameter

Battary: Lithium battery

External Light: 3* LONAKO LED

Internal Light: 1* LED

Chromaticity: White

Function: External Light: Flashing | Internal Light: Steady

Flash Frequency (External Light): 50~70times/min

Light Intensity: External Light: 4.3 cd | Internal Light: 0.5cd

Operation Time: ≥15h over 4.3cd at -30℃

Working Temperature: -1℃ ~ +30℃

Storage Temperature:  -30℃ ~ +65℃

Expiry Date: 5 years

Dimension: Battery Body: 71.5*44.7*24.5mm | Outer light holderФ38*19 mm

Weight: ~100g

Activation: Automatic activation once liferaft is inflated. Both exterior and internal light can be turned off and on by manual switches.

Performance: Fire-resistant, oil-resistant, mould-proof, corrosion-proof, waterproof

Environment Performance: Meet RoHS and asbestos-free requirements

Standards: MSC.81(70) as amended, USCG 161.101, IEC 60945, ISO 24408

Certifications: MED, USCG
